Aluminum Nitride Ceramic Substrates: Enabling High-Power Electronics Through Superior Thermal Management coorstek alumina tubes

1. Material Scientific Research and Structural Quality

1.1 Crystal Structure and Chemical Security

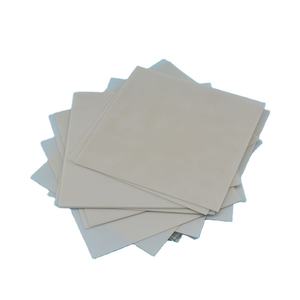

(Aluminum Nitride Ceramic Substrates)

Light weight aluminum nitride (AlN) is a wide bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, composed of alternating layers of light weight aluminum and nitrogen atoms bound through solid covalent interactions.

This durable atomic setup endows AlN with outstanding thermal stability, preserving structural integrity up to 2200 ° C in inert atmospheres and resisting decay under extreme thermal cycling.

Unlike alumina (Al ₂ O SIX), AlN is chemically inert to molten metals and lots of responsive gases, making it ideal for rough settings such as semiconductor processing chambers and high-temperature heating systems.

Its high resistance to oxidation– developing only a thin safety Al ₂ O five layer at surface upon direct exposure to air– ensures long-lasting integrity without significant deterioration of mass properties.

Moreover, AlN displays exceptional electric insulation with a resistivity surpassing 10 ¹⁴ Ω · centimeters and a dielectric strength over 30 kV/mm, vital for high-voltage applications.

1.2 Thermal Conductivity and Digital Characteristics

The most defining feature of light weight aluminum nitride is its outstanding thermal conductivity, commonly varying from 140 to 180 W/(m · K )for commercial-grade substrates– over 5 times more than that of alumina (≈ 30 W/(m · K)).

This efficiency stems from the reduced atomic mass of nitrogen and aluminum, combined with strong bonding and minimal point issues, which allow efficient phonon transport through the lattice.

Nevertheless, oxygen pollutants are especially detrimental; even trace amounts (above 100 ppm) replacement for nitrogen sites, producing aluminum openings and scattering phonons, therefore substantially lowering thermal conductivity.

High-purity AlN powders manufactured using carbothermal reduction or straight nitridation are necessary to achieve ideal warm dissipation.

Regardless of being an electric insulator, AlN’s piezoelectric and pyroelectric homes make it beneficial in sensing units and acoustic wave gadgets, while its vast bandgap (~ 6.2 eV) supports operation in high-power and high-frequency electronic systems.

2. Construction Processes and Production Obstacles

( Aluminum Nitride Ceramic Substrates)

2.1 Powder Synthesis and Sintering Methods

Making high-performance AlN substratums begins with the synthesis of ultra-fine, high-purity powder, commonly accomplished via responses such as Al ₂ O TWO + 3C + N ₂ → 2AlN + 3CO (carbothermal reduction) or straight nitridation of aluminum steel: 2Al + N ₂ → 2AlN.

The resulting powder should be meticulously grated and doped with sintering help like Y TWO O TWO, CaO, or unusual earth oxides to advertise densification at temperature levels in between 1700 ° C and 1900 ° C under nitrogen environment.

These additives form transient fluid phases that improve grain border diffusion, allowing complete densification (> 99% academic thickness) while lessening oxygen contamination.

Post-sintering annealing in carbon-rich environments can even more reduce oxygen web content by removing intergranular oxides, thus bring back peak thermal conductivity.

Attaining uniform microstructure with regulated grain dimension is crucial to stabilize mechanical toughness, thermal performance, and manufacturability.

2.2 Substratum Shaping and Metallization

When sintered, AlN porcelains are precision-ground and washed to meet tight dimensional tolerances needed for digital packaging, often down to micrometer-level monotony.

Through-hole exploration, laser cutting, and surface area patterning allow assimilation right into multilayer plans and hybrid circuits.

A vital step in substratum construction is metallization– the application of conductive layers (typically tungsten, molybdenum, or copper) through processes such as thick-film printing, thin-film sputtering, or straight bonding of copper (DBC).

For DBC, copper foils are bound to AlN surface areas at elevated temperatures in a regulated ambience, developing a solid interface ideal for high-current applications.

Alternate techniques like energetic steel brazing (AMB) make use of titanium-containing solders to improve adhesion and thermal exhaustion resistance, specifically under repeated power biking.

Appropriate interfacial engineering ensures reduced thermal resistance and high mechanical dependability in operating gadgets.

3. Efficiency Advantages in Electronic Solution

3.1 Thermal Monitoring in Power Electronic Devices

AlN substratums master taking care of heat produced by high-power semiconductor devices such as IGBTs, MOSFETs, and RF amplifiers used in electrical cars, renewable resource inverters, and telecommunications infrastructure.

Reliable heat extraction prevents localized hotspots, lowers thermal anxiety, and prolongs gadget lifetime by minimizing electromigration and delamination dangers.

Compared to typical Al two O ₃ substratums, AlN allows smaller package dimensions and greater power thickness due to its premium thermal conductivity, allowing developers to press efficiency limits without compromising reliability.

In LED lighting and laser diodes, where junction temperature level straight influences efficiency and shade stability, AlN substrates significantly boost luminescent output and operational life-span.

Its coefficient of thermal expansion (CTE ≈ 4.5 ppm/K) likewise closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), reducing thermo-mechanical tension during thermal biking.

3.2 Electrical and Mechanical Reliability

Past thermal efficiency, AlN provides low dielectric loss (tan δ < 0.0005) and stable permittivity (εᵣ ≈ 8.9) throughout a broad regularity array, making it ideal for high-frequency microwave and millimeter-wave circuits.

Its hermetic nature avoids dampness ingress, getting rid of deterioration threats in damp settings– a vital advantage over natural substrates.

Mechanically, AlN possesses high flexural stamina (300– 400 MPa) and hardness (HV ≈ 1200), guaranteeing durability during handling, setting up, and area operation.

These features collectively add to enhanced system dependability, decreased failing rates, and reduced total cost of possession in mission-critical applications.

4. Applications and Future Technological Frontiers

4.1 Industrial, Automotive, and Defense Systems

AlN ceramic substrates are now basic in innovative power components for industrial electric motor drives, wind and solar inverters, and onboard chargers in electrical and hybrid vehicles.

In aerospace and defense, they support radar systems, electronic war devices, and satellite interactions, where performance under extreme conditions is non-negotiable.

Medical imaging equipment, including X-ray generators and MRI systems, additionally benefit from AlN’s radiation resistance and signal honesty.

As electrification trends speed up across transportation and energy sectors, demand for AlN substrates remains to expand, driven by the need for portable, effective, and trusted power electronic devices.

4.2 Arising Integration and Lasting Growth

Future innovations concentrate on incorporating AlN into three-dimensional packaging architectures, ingrained passive elements, and heterogeneous assimilation platforms incorporating Si, SiC, and GaN tools.

Research study right into nanostructured AlN films and single-crystal substratums aims to further increase thermal conductivity towards theoretical limitations (> 300 W/(m · K)) for next-generation quantum and optoelectronic gadgets.

Efforts to minimize manufacturing prices with scalable powder synthesis, additive manufacturing of intricate ceramic structures, and recycling of scrap AlN are getting momentum to boost sustainability.

Additionally, modeling tools making use of limited aspect evaluation (FEA) and artificial intelligence are being used to maximize substrate design for particular thermal and electrical loads.

To conclude, aluminum nitride ceramic substrates represent a keystone modern technology in modern-day electronic devices, uniquely connecting the gap in between electric insulation and exceptional thermal transmission.

Their duty in making it possible for high-efficiency, high-reliability power systems underscores their calculated value in the continuous advancement of electronic and power technologies.
