1. Introduction to Oil Immersed Transformers
In the complex web of our contemporary electric grid, transformers play an essential duty, silently tipping voltage up and down to guarantee electricity can be sent efficiently over long distances and dispersed securely to our homes and markets. Among the numerous types readily available, the oil immersed transformer stands as a testament to tried and tested reliability and sturdiness. For decades, these workhorses have formed the foundation of power systems worldwide.
An oil immersed transformer is a sort of electric transformer that utilizes a specific protecting oil as both a coolant and a protecting medium. This style is predominantly utilized for medium to high-power applications, making it a foundation of electric framework. This overview digs deep right into the globe of oil submersed power transformers and oil immersed distribution transformers, discovering their technology, applications, and their progressing duty in an age of digitalization and renewable energy.
1.1 What is an Oil Immersed Transformer?
At its core, an oil immersed transformer contains a magnetic core and copper or light weight aluminum windings housed inside a secured container loaded with shielding oil. The key feature of the oil is twofold:
1. Insulation: The oil possesses high dielectric stamina, successfully protecting the high-voltage windings from the transformer’s core and grounded container. This avoids brief circuits and electric malfunctions.
2. Cooling: As the transformer runs, the windings create substantial warmth as a result of I ² R losses. The flowing oil absorbs this warm, convects it to the transformer’s container walls, and dissipates it right into the surrounding air. Larger units commonly include radiators or fins to increase the surface for more effective cooling.
This dual-purpose use oil makes the oil submersed transformer incredibly effective and durable, efficient in dealing with high lots and withstanding short-term overloads better than numerous dry-type options.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these systems are oil submersed transformers, they serve distinct functions within the power system network. Comprehending the difference is vital.
An oil submersed power transformer is a heavyweight, usually utilized in transmission networks at producing stations and major substations. Their main role is to “step-up” the voltage produced at the nuclear power plant to very high levels (e.g., 138 kV, 230 kV, 500 kV and above) for effective long-distance transmission, and to “step-down” the voltage at receiving substations for additional distribution. They are defined by their extremely high power ratings (often exceeding 100 MVA), complicated building and construction, and on-load tap changers for voltage guideline.
An oil engaged circulation transformer, on the various other hand, does the final action in the power distribution chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it down to the low voltages (e.g., 400/230 V) made use of by business and property customers. You commonly find them on energy poles (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have reduced power scores (normally approximately 2,500 kVA), and are developed for maximum performance at reduced, extra continuous tons.

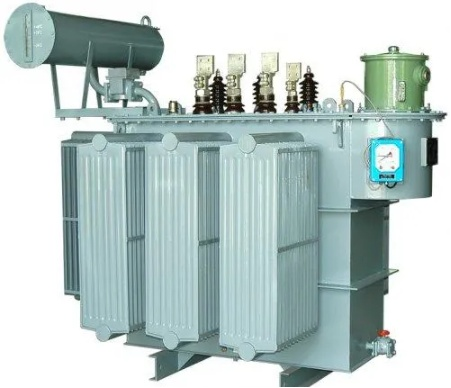

(Oil immersed power transformer)
2. Trick Advantages of Oil Immersed Transformers
The enduring popularity of the oil submersed transformer is not accidental. It provides a suite of compelling benefits that make it the recommended option for numerous requiring applications.
2.1 Superior Air Conditioning and Overload Capacity
The exceptional thermal capability of oil contrasted to air permits an oil immersed power transformer to handle and dissipate warmth much more successfully. This equates to a higher overload capability. Throughout durations of height power demand, an oil immersed transformer can manage momentary overloads without sustaining damage, a crucial function for maintaining grid security. The oil’s blood circulation makes certain even heat distribution, protecting against local hot spots that can break down insulation over time.
2.2 Enhanced Insulation and Long Service Life
The combination of top notch mineral oil and meticulously impregnated paper insulation creates a dielectric system of exceptional stamina. This durable insulation system safeguards the transformer from voltage rises and transients, contributing to a functional life-span that can extend to 30-40 years or even more with appropriate upkeep. The secured storage tank likewise secures the inner elements from dampness, dirt, and other atmospheric contaminants.
2.3 High Effectiveness and Cost-Effectiveness
For high-power applications, the oil submersed transformer is frequently one of the most cost-effective selection. The products used– mineral oil, steel storage tank, and copper/aluminum windings– supply a favorable equilibrium of efficiency and price. The high effectiveness of these transformers, particularly at their rated load, leads to reduced energy losses over their lifetime, resulting in considerable expense financial savings for utility companies and huge industrial individuals.
3. Hot Topics and Future Trends
The world of oil submersed transformers is not static. It is continually evolving to meet new challenges and incorporate with modern-day technologies.
3.1 Naturally Degradable and Fire-Resistant Oils
Environmental and safety problems are driving a significant shift far from standard mineral oil. The market is quickly adopting oil immersed transformers full of biodegradable esters (artificial or all-natural). These oils supply a greater fire factor (making them K-class fireproof), are less harmful, and are easily biodegradable, considerably decreasing the environmental effect in case of a leak. This pattern is making oil submersed circulation transformers much safer for installation in metropolitan locations and ecologically sensitive areas.
3.2 Combination with Smart Grids and IoT
The modern-day oil involved power transformer is ending up being an intelligent node in the smart grid. Sensing units are being integrated to check crucial parameters in real-time, consisting of:
Dissolved Gas Evaluation (DGA): Discovering fault gases generated within the oil to forecast incipient mistakes.
Temperature Level Monitoring: Tracking top-oil and hotspot temperatures.
Lots and Power Quality Monitoring.
This information, sent by means of IoT (Web of Points) systems, makes it possible for predictive maintenance, protects against unintended outages, and optimizes transformer usage and life expectancy.
3.3 Supporting the Renewable Energy Transition
The worldwide push for renewables is creating brand-new demand for oil immersed transformers. Large solar ranches and wind power installations call for robust oil immersed power transformers to step up the generated voltage to transmission degrees. Moreover, the periodic nature of renewables locations higher anxiety on grid components, and the tried and tested dependability and overload capability of oil immersed transformers make them ideal for this vital role.
4. Choice and Maintenance Ideal Practices
Picking the appropriate transformer and keeping it correctly is crucial to a trusted power system.
4.1 Exactly how to Choose the Right Oil Immersed Transformer
Picking in between an oil immersed power transformer and an oil immersed circulation transformer depends upon the application. Key factors to consider consist of:
1. Voltage Degree and kVA Score: Suit the transformer’s specs to your system’s needs.
2. Application: Transmission substation, plant, or industrial distribution.
3. Location: Indoor vs. exterior, environmental problems, and fire safety policies (which may influence the option of shielding oil).
4. Efficiency Requirements: Adhere to local efficiency criteria like DOE (USA) or EU CoC (Europe).
5. Budget plan: Take into consideration both the preliminary capital expense and the complete price of ownership, consisting of losses.
(Oil immersed distribution transformer)
4.2 Important Upkeep for Durability
Aggressive maintenance is important for any oil submersed transformer. A detailed program needs to consist of:
1. Normal Oil Tasting and Testing: Periodic DGA and screening of dielectric toughness and moisture content are one of the most reliable methods to evaluate the health and wellness of the transformer.
2. Bushing and Insulation Examination: Aesthetic look for splits, contamination, or leaks.
3. Tap Changer Upkeep: Regular inspection and servicing of on-load or off-load tap changers.
4. Keep it Tidy and Dry: Guaranteeing the tank exterior, radiators, and rests are clean and useful.
The oil immersed transformer, in its duties as both a high-capacity oil immersed power transformer and an ubiquitous oil submersed distribution transformer, continues to be an irreplaceable element of our global energy infrastructure. Its tested layout, coupled with recurring innovations in protecting liquids and digital monitoring, guarantees it will continue to be a trustworthy, effective, and smart remedy for powering our world for years to find. As we construct the grids of the future, integrating even more renewables and digital knowledge, the durable and adaptable oil submersed transformer will unquestionably be at the heart of it.
