Lightweight Concrete Foam Generators: Engineering Precision in Cellular Concrete Fabrication for Sustainable Construction foam beton machine

1. Fundamentals of Foam Generation and the Function in Lightweight Concrete Systems

1.1 Concepts of Air Entrainment and Cellular Framework Development

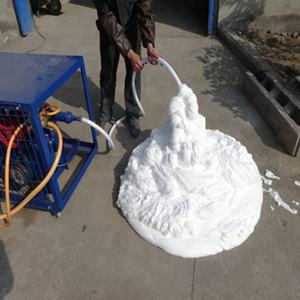

(Lightweight Concrete Foam Generators)

Light-weight concrete, a course of construction materials identified by lowered density and boosted thermal insulation, depends basically on the controlled intro of air or gas spaces within a cementitious matrix– a process known as foaming.

The production of these uniformly distributed, stable air cells is accomplished through using a specialized device known as a foam generator, which generates fine, microscale bubbles that are subsequently mixed right into the concrete slurry.

These bubbles, generally ranging from 50 to 500 micrometers in size, end up being permanently entrained upon concrete hydration, causing a mobile concrete structure with dramatically reduced system weight– often in between 300 kg/m six and 1,800 kg/m ³– contrasted to standard concrete (~ 2,400 kg/m SIX).

The foam generator is not simply a supporting tool but an important engineering element that determines the top quality, uniformity, and efficiency of the last lightweight concrete item.

The procedure starts with a fluid foaming representative, normally a protein-based or artificial surfactant remedy, which is introduced right into the generator where it is mechanically or pneumatically distributed right into a dense foam via high shear or pressed air shot.

The stability and bubble dimension distribution of the generated foam directly influence vital material residential or commercial properties such as compressive strength, thermal conductivity, and workability.

1.2 Category and Operational Systems of Foam Generators

Foam generators are generally classified into 3 key kinds based on their operational concepts: low-pressure (or wet-film), high-pressure (or vibrant), and rotating (or centrifugal) systems.

Low-pressure generators use a porous medium– such as a fine mesh, fabric, or ceramic plate– whereby compressed air is forced, creating bubbles as the frothing option moves over the surface.

This method produces fairly big, less uniform bubbles and is usually utilized for lower-grade applications where specific control is less critical.

High-pressure systems, on the other hand, utilize a nozzle-based style where a high-velocity stream of pressed air shears the frothing fluid right into a penalty, uniform foam with narrow bubble size circulation.

These systems supply superior control over foam density and stability, making them perfect for structural-grade light-weight concrete and precast applications.

( Lightweight Concrete Foam Generators)

Rotary foam generators make use of a spinning disk or drum that flings the foaming solution into a stream of air, producing bubbles through mechanical dispersion.

While much less precise than high-pressure systems, rotary generators are valued for their robustness, convenience of upkeep, and continual outcome, suitable for massive on-site putting procedures.

The option of foam generator type depends on project-specific demands, consisting of wanted concrete thickness, manufacturing volume, and efficiency specs.

2. Product Science Behind Foam Security and Concrete Efficiency

2.1 Foaming Representatives and Interfacial Chemistry

The performance of a foam generator is inherently connected to the chemical composition and physical behavior of the lathering representative.

Foaming representatives are surfactants that decrease the surface area tension of water, enabling the formation of stable air-liquid user interfaces.

Protein-based representatives, stemmed from hydrolyzed keratin or albumin, produce sturdy, flexible foam movies with excellent security and are often favored in architectural applications.

Synthetic representatives, such as alkyl sulfonates or ethoxylated alcohols, offer faster foam generation and lower expense yet may create less secure bubbles under prolonged blending or unfavorable environmental problems.

The molecular structure of the surfactant determines the density and mechanical strength of the lamellae (thin liquid films) surrounding each bubble, which need to withstand coalescence and water drainage during mixing and healing.

Ingredients such as thickness modifiers, stabilizers, and pH barriers are usually included into frothing solutions to boost foam perseverance and compatibility with cement chemistry.

2.2 Impact of Foam Characteristics on Concrete Residence

The physical qualities of the created foam– bubble size, size circulation, air material, and foam density– directly determine the macroscopic behavior of lightweight concrete.

Smaller sized, consistently distributed bubbles enhance mechanical strength by lessening anxiety concentration points and creating an extra uniform microstructure.

On the other hand, bigger or uneven bubbles can act as imperfections, decreasing compressive strength and boosting leaks in the structure.

Foam security is equally crucial; premature collapse or coalescence throughout blending result in non-uniform density, segregation, and minimized insulation efficiency.

The air-void system likewise affects thermal conductivity, with finer, closed-cell frameworks providing remarkable insulation as a result of caught air’s reduced thermal diffusivity.

In addition, the water content of the foam influences the water-cement proportion of the last mix, demanding exact calibration to avoid compromising the concrete matrix or delaying hydration.

Advanced foam generators now integrate real-time tracking and feedback systems to keep consistent foam result, making certain reproducibility throughout batches.

3. Integration in Modern Construction and Industrial Applications

3.1 Structural and Non-Structural Uses Foamed Concrete

Light-weight concrete created using foam generators is employed across a broad range of building and construction applications, varying from insulation panels and void filling to bearing walls and pavement systems.

In structure envelopes, lathered concrete supplies outstanding thermal and acoustic insulation, adding to energy-efficient styles and reduced heating and cooling lots.

Its reduced thickness additionally lowers architectural dead tons, permitting smaller foundations and longer spans in high-rise and bridge construction.

In civil engineering, it is used for trench backfilling, tunneling, and incline stablizing, where its self-leveling and low-stress characteristics protect against ground disruption and enhance security.

Precast manufacturers use high-precision foam generators to produce light-weight blocks, panels, and building components with limited dimensional resistances and regular quality.

Additionally, foamed concrete shows inherent fire resistance as a result of its reduced thermal conductivity and lack of organic components, making it appropriate for fire-rated settings up and passive fire security systems.

3.2 Automation, Scalability, and On-Site Production Solutions

Modern building needs quick, scalable, and dependable production of light-weight concrete, driving the integration of foam generators into computerized batching and pumping systems.

Completely automated plants can integrate foam generation with concrete mixing, water application, and additive injection, enabling continuous manufacturing with marginal human treatment.

Mobile foam generator units are significantly deployed on construction websites, enabling on-demand construction of foamed concrete directly at the point of use, reducing transport costs and material waste.

These systems are usually geared up with electronic controls, remote surveillance, and information logging capacities to make sure compliance with engineering requirements and top quality standards.

The scalability of foam generation innovation– from little mobile devices to industrial-scale systems– sustains its fostering in both established and arising markets, advertising sustainable building practices internationally.

4. Technological Innovations and Future Directions in Foam Generation

4.1 Smart Foam Generators and Real-Time Refine Control

Arising advancements in foam generator style focus on boosting precision, performance, and adaptability through digitalization and sensor combination.

Smart foam generators outfitted with stress sensors, circulation meters, and optical bubble analyzers can dynamically change air-to-liquid proportions and display foam high quality in actual time.

Machine learning algorithms are being discovered to anticipate foam habits based upon ecological conditions, resources variations, and historic efficiency information.

Such innovations aim to reduce batch-to-batch variability and maximize material performance, especially in high-stakes applications like nuclear protecting or offshore building.

4.2 Sustainability, Environmental Impact, and Green Product Combination

As the building and construction industry approaches decarbonization, foam generators contribute in lowering the environmental impact of concrete.

By decreasing material thickness, less concrete is needed per unit volume, directly minimizing carbon monoxide â‚‚ emissions associated with cement production.

Moreover, frothed concrete can integrate additional cementitious materials (SCMs) such as fly ash, slag, or silica fume, enhancing sustainability without compromising performance.

Research study is additionally underway to create bio-based foaming agents originated from eco-friendly resources, minimizing dependence on petrochemical surfactants.

Future developments may include energy-efficient foam generation methods, assimilation with carbon capture technologies, and recyclable concrete solutions enabled by steady mobile structures.

Finally, the lightweight concrete foam generator is much more than a mechanical gadget– it is a crucial enabler of advanced product engineering in modern building.

By exactly managing the architecture of air voids at the microscale, it transforms traditional concrete right into a multifunctional, lasting, and high-performance product.

As technology progresses, foam generators will certainly remain to drive technology in structure scientific research, framework strength, and ecological stewardship.
