Spherical Alumina: Engineered Filler for Advanced Thermal Management alumina casting

1. Material Basics and Morphological Advantages

1.1 Crystal Framework and Chemical Structure

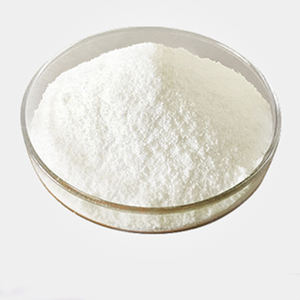

(Spherical alumina)

Spherical alumina, or spherical light weight aluminum oxide (Al two O ₃), is a synthetically produced ceramic material defined by a distinct globular morphology and a crystalline framework mainly in the alpha (α) stage.

Alpha-alumina, the most thermodynamically steady polymorph, includes a hexagonal close-packed arrangement of oxygen ions with aluminum ions occupying two-thirds of the octahedral interstices, resulting in high latticework energy and outstanding chemical inertness.

This phase shows superior thermal security, preserving stability as much as 1800 ° C, and resists response with acids, antacid, and molten steels under most industrial problems.

Unlike irregular or angular alumina powders derived from bauxite calcination, spherical alumina is engineered with high-temperature processes such as plasma spheroidization or flame synthesis to attain uniform roundness and smooth surface texture.

The transformation from angular precursor particles– usually calcined bauxite or gibbsite– to thick, isotropic spheres gets rid of sharp edges and interior porosity, boosting packing effectiveness and mechanical durability.

High-purity grades (≥ 99.5% Al Two O ₃) are important for digital and semiconductor applications where ionic contamination must be lessened.

1.2 Particle Geometry and Packaging Behavior

The specifying feature of round alumina is its near-perfect sphericity, usually measured by a sphericity index > 0.9, which substantially influences its flowability and packing thickness in composite systems.

As opposed to angular particles that interlock and produce spaces, round bits roll past each other with minimal friction, making it possible for high solids filling during formulation of thermal interface materials (TIMs), encapsulants, and potting compounds.

This geometric uniformity enables optimum theoretical packing thickness exceeding 70 vol%, far exceeding the 50– 60 vol% common of uneven fillers.

Greater filler loading directly converts to enhanced thermal conductivity in polymer matrices, as the continual ceramic network offers reliable phonon transport pathways.

In addition, the smooth surface reduces endure processing tools and decreases viscosity increase throughout blending, enhancing processability and dispersion stability.

The isotropic nature of spheres likewise avoids orientation-dependent anisotropy in thermal and mechanical buildings, making certain constant efficiency in all directions.

2. Synthesis Techniques and Quality Control

2.1 High-Temperature Spheroidization Techniques

The production of round alumina mainly relies on thermal methods that thaw angular alumina fragments and allow surface area stress to reshape them into rounds.

( Spherical alumina)

Plasma spheroidization is one of the most widely utilized commercial approach, where alumina powder is injected right into a high-temperature plasma fire (as much as 10,000 K), triggering rapid melting and surface area tension-driven densification right into perfect spheres.

The liquified droplets solidify swiftly during trip, developing thick, non-porous fragments with consistent dimension circulation when paired with exact category.

Alternative approaches consist of fire spheroidization making use of oxy-fuel torches and microwave-assisted home heating, though these normally supply lower throughput or much less control over particle size.

The starting product’s pureness and fragment dimension circulation are vital; submicron or micron-scale forerunners yield likewise sized balls after processing.

Post-synthesis, the product undertakes rigorous sieving, electrostatic separation, and laser diffraction evaluation to guarantee tight bit dimension circulation (PSD), typically varying from 1 to 50 µm depending on application.

2.2 Surface Area Alteration and Useful Customizing

To boost compatibility with organic matrices such as silicones, epoxies, and polyurethanes, spherical alumina is usually surface-treated with coupling representatives.

Silane combining representatives– such as amino, epoxy, or vinyl functional silanes– type covalent bonds with hydroxyl teams on the alumina surface area while providing organic capability that engages with the polymer matrix.

This therapy enhances interfacial bond, decreases filler-matrix thermal resistance, and prevents cluster, resulting in more uniform compounds with superior mechanical and thermal performance.

Surface finishings can likewise be engineered to give hydrophobicity, enhance diffusion in nonpolar materials, or allow stimuli-responsive behavior in clever thermal products.

Quality control includes measurements of BET surface area, faucet thickness, thermal conductivity (typically 25– 35 W/(m · K )for thick α-alumina), and contamination profiling via ICP-MS to omit Fe, Na, and K at ppm levels.

Batch-to-batch consistency is important for high-reliability applications in electronics and aerospace.

3. Thermal and Mechanical Efficiency in Composites

3.1 Thermal Conductivity and Interface Design

Spherical alumina is primarily utilized as a high-performance filler to enhance the thermal conductivity of polymer-based products used in digital product packaging, LED lighting, and power components.

While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), packing with 60– 70 vol% spherical alumina can enhance this to 2– 5 W/(m · K), adequate for effective warm dissipation in compact devices.

The high innate thermal conductivity of α-alumina, integrated with marginal phonon scattering at smooth particle-particle and particle-matrix user interfaces, allows effective warmth transfer via percolation networks.

Interfacial thermal resistance (Kapitza resistance) remains a restricting element, yet surface area functionalization and enhanced dispersion strategies aid minimize this barrier.

In thermal user interface materials (TIMs), spherical alumina minimizes get in touch with resistance between heat-generating parts (e.g., CPUs, IGBTs) and heat sinks, protecting against overheating and extending device life-span.

Its electrical insulation (resistivity > 10 ¹² Ω · centimeters) guarantees security in high-voltage applications, identifying it from conductive fillers like metal or graphite.

3.2 Mechanical Security and Reliability

Beyond thermal performance, round alumina boosts the mechanical robustness of composites by boosting hardness, modulus, and dimensional stability.

The spherical shape distributes anxiety consistently, minimizing crack initiation and propagation under thermal biking or mechanical tons.

This is specifically important in underfill materials and encapsulants for flip-chip and 3D-packaged tools, where coefficient of thermal development (CTE) inequality can generate delamination.

By readjusting filler loading and particle size circulation (e.g., bimodal blends), the CTE of the composite can be tuned to match that of silicon or published circuit boards, decreasing thermo-mechanical tension.

In addition, the chemical inertness of alumina prevents destruction in humid or destructive atmospheres, ensuring long-term dependability in automotive, industrial, and outdoor electronics.

4. Applications and Technical Evolution

4.1 Electronic Devices and Electric Lorry Systems

Round alumina is a crucial enabler in the thermal administration of high-power electronics, including shielded gate bipolar transistors (IGBTs), power materials, and battery management systems in electric automobiles (EVs).

In EV battery packs, it is included into potting substances and phase modification products to avoid thermal runaway by uniformly distributing heat throughout cells.

LED suppliers utilize it in encapsulants and second optics to preserve lumen result and shade consistency by reducing joint temperature.

In 5G facilities and data centers, where warmth change densities are climbing, spherical alumina-filled TIMs ensure steady procedure of high-frequency chips and laser diodes.

Its duty is expanding into advanced product packaging innovations such as fan-out wafer-level packaging (FOWLP) and embedded die systems.

4.2 Arising Frontiers and Sustainable Innovation

Future advancements concentrate on crossbreed filler systems incorporating spherical alumina with boron nitride, aluminum nitride, or graphene to achieve synergistic thermal efficiency while maintaining electrical insulation.

Nano-spherical alumina (sub-100 nm) is being checked out for clear porcelains, UV coverings, and biomedical applications, though challenges in dispersion and expense stay.

Additive production of thermally conductive polymer compounds making use of spherical alumina enables complicated, topology-optimized warmth dissipation frameworks.

Sustainability initiatives consist of energy-efficient spheroidization processes, recycling of off-spec material, and life-cycle evaluation to lower the carbon impact of high-performance thermal materials.

In recap, spherical alumina represents a crucial crafted material at the junction of porcelains, compounds, and thermal science.

Its one-of-a-kind combination of morphology, pureness, and performance makes it crucial in the recurring miniaturization and power intensification of contemporary electronic and power systems.
