Silicon Carbide Crucibles: High-Temperature Stability for Demanding Thermal Processes ferro silicon nitride

1. Material Basics and Architectural Properties

1.1 Crystal Chemistry and Polymorphism

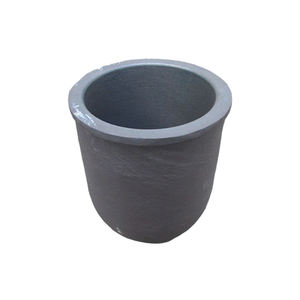

(Silicon Carbide Crucibles)

Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms arranged in a tetrahedral lattice, creating among one of the most thermally and chemically robust materials known.

It exists in over 250 polytypic types, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most pertinent for high-temperature applications.

The strong Si– C bonds, with bond power exceeding 300 kJ/mol, provide phenomenal firmness, thermal conductivity, and resistance to thermal shock and chemical attack.

In crucible applications, sintered or reaction-bonded SiC is chosen due to its capability to maintain architectural integrity under extreme thermal slopes and harsh liquified settings.

Unlike oxide ceramics, SiC does not undertake turbulent stage transitions approximately its sublimation point (~ 2700 ° C), making it perfect for continual procedure over 1600 ° C.

1.2 Thermal and Mechanical Efficiency

A specifying quality of SiC crucibles is their high thermal conductivity– varying from 80 to 120 W/(m · K)– which promotes consistent warm distribution and minimizes thermal tension during quick home heating or cooling.

This residential property contrasts sharply with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are susceptible to breaking under thermal shock.

SiC also exhibits excellent mechanical stamina at elevated temperature levels, maintaining over 80% of its room-temperature flexural strength (as much as 400 MPa) even at 1400 ° C.

Its reduced coefficient of thermal expansion (~ 4.0 × 10 ⁻⁶/ K) even more enhances resistance to thermal shock, an essential factor in repeated cycling between ambient and operational temperatures.

Additionally, SiC demonstrates superior wear and abrasion resistance, guaranteeing lengthy life span in atmospheres entailing mechanical handling or unstable thaw flow.

2. Manufacturing Approaches and Microstructural Control

( Silicon Carbide Crucibles)

2.1 Sintering Methods and Densification Approaches

Business SiC crucibles are mostly fabricated via pressureless sintering, reaction bonding, or hot pushing, each offering unique advantages in price, purity, and performance.

Pressureless sintering involves condensing fine SiC powder with sintering aids such as boron and carbon, followed by high-temperature treatment (2000– 2200 ° C )in inert atmosphere to achieve near-theoretical density.

This method returns high-purity, high-strength crucibles suitable for semiconductor and progressed alloy processing.

Reaction-bonded SiC (RBSC) is produced by penetrating a porous carbon preform with molten silicon, which reacts to develop β-SiC in situ, causing a composite of SiC and residual silicon.

While slightly reduced in thermal conductivity due to metallic silicon additions, RBSC uses superb dimensional stability and lower manufacturing expense, making it popular for massive commercial use.

Hot-pressed SiC, though more expensive, gives the highest thickness and purity, scheduled for ultra-demanding applications such as single-crystal growth.

2.2 Surface Area Quality and Geometric Accuracy

Post-sintering machining, consisting of grinding and washing, makes certain precise dimensional tolerances and smooth internal surfaces that reduce nucleation websites and reduce contamination threat.

Surface roughness is carefully regulated to prevent melt adhesion and help with very easy launch of strengthened products.

Crucible geometry– such as wall surface thickness, taper angle, and lower curvature– is maximized to balance thermal mass, architectural strength, and compatibility with heater heating elements.

Personalized layouts suit particular thaw volumes, home heating accounts, and product reactivity, making sure ideal performance across diverse commercial processes.

Advanced quality control, including X-ray diffraction, scanning electron microscopy, and ultrasonic screening, verifies microstructural homogeneity and absence of problems like pores or fractures.

3. Chemical Resistance and Communication with Melts

3.1 Inertness in Hostile Settings

SiC crucibles exhibit extraordinary resistance to chemical assault by molten metals, slags, and non-oxidizing salts, outmatching traditional graphite and oxide porcelains.

They are stable touching liquified light weight aluminum, copper, silver, and their alloys, standing up to wetting and dissolution as a result of low interfacial power and formation of protective surface area oxides.

In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles prevent metallic contamination that might break down electronic properties.

Nonetheless, under very oxidizing problems or in the existence of alkaline fluxes, SiC can oxidize to develop silica (SiO TWO), which may react additionally to create low-melting-point silicates.

Therefore, SiC is finest suited for neutral or lowering environments, where its stability is maximized.

3.2 Limitations and Compatibility Considerations

Despite its robustness, SiC is not globally inert; it responds with specific liquified materials, specifically iron-group steels (Fe, Ni, Co) at heats with carburization and dissolution procedures.

In molten steel handling, SiC crucibles degrade rapidly and are as a result prevented.

Likewise, alkali and alkaline earth metals (e.g., Li, Na, Ca) can decrease SiC, launching carbon and developing silicides, restricting their usage in battery material synthesis or responsive metal casting.

For molten glass and porcelains, SiC is normally suitable yet may introduce trace silicon right into extremely delicate optical or electronic glasses.

Comprehending these material-specific communications is important for choosing the proper crucible type and making sure procedure purity and crucible long life.

4. Industrial Applications and Technological Evolution

4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors

SiC crucibles are important in the production of multicrystalline and monocrystalline silicon ingots for solar cells, where they withstand long term direct exposure to thaw silicon at ~ 1420 ° C.

Their thermal security guarantees consistent crystallization and minimizes dislocation thickness, straight affecting solar efficiency.

In foundries, SiC crucibles are used for melting non-ferrous metals such as light weight aluminum and brass, supplying longer life span and reduced dross development compared to clay-graphite alternatives.

They are likewise used in high-temperature research laboratories for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of innovative porcelains and intermetallic substances.

4.2 Future Fads and Advanced Product Assimilation

Arising applications consist of the use of SiC crucibles in next-generation nuclear materials testing and molten salt reactors, where their resistance to radiation and molten fluorides is being assessed.

Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O SIX) are being related to SiC surfaces to even more enhance chemical inertness and stop silicon diffusion in ultra-high-purity procedures.

Additive manufacturing of SiC elements using binder jetting or stereolithography is under growth, appealing complicated geometries and rapid prototyping for specialized crucible designs.

As need grows for energy-efficient, sturdy, and contamination-free high-temperature handling, silicon carbide crucibles will certainly continue to be a keystone modern technology in advanced products making.

To conclude, silicon carbide crucibles represent a vital allowing part in high-temperature industrial and clinical processes.

Their unparalleled mix of thermal stability, mechanical stamina, and chemical resistance makes them the product of option for applications where efficiency and reliability are critical.
