How Do You Select the Perfect Bearing? A Step-by-Step Guide bearing for compressor

Bearings are usually called the “joints of industry.” Getting the option right directly influences your devices’s integrity, service life, and upkeep expenses. Several bearing failings don’t originate from poor quality– they come from incorrect choices. Things like load calculation mistakes, overlooking rate limitations, or picking the incorrect lubrication approach. These tiny mistakes can trigger equipment to damage down early in its service life. This overview walks you through the entire choice procedure, providing designers and procurement professionals a clear course from evaluating working conditions to validating the appropriate bearing version.

Component One: What You Required to Know Prior To Beginning

Before you open any bearing brochure, ask yourself one concern: Exactly what does this maker need the bearing to do? The solution lies in 5 essential locations:

1. Lots Characteristics

Lots is the primary factor in birthing choice. You require to find out three things:

Instructions: Is it radial tons (vertical to the shaft), axial load (alongside the shaft), or a mix of both?

Size: Is it light, modest, or heavy? Any kind of effect loads?

Nature: Is the load constant or changing? Just how commonly do influence tons take place and exactly how strong are they?

Take a belt conveyor as an example. The bearings at the drive end handle radial loads from belt stress, the weight of the belt and rollers, plus the shaft assembly. When calculating, you have to consider various operating problems– start-up, regular operating, stopping– and use the worst-case situation for your layout.

2. Speed Conditions

(bearings for steel mill)

Rate is another essential variable affecting birthing life. According to tiredness life theory, birthing life has an inverse connection with rate. For variable rate conditions, you require to calculate the equal rate. Take a rotary kiln support roller– its speed might vary from 0.5 to 2.5 r/min. You would certainly require to weight the running time at each rate to get an equivalent value.

One thing to look out for: knowing only the maximum rate can ruin your lubrication technique. The lubricating substance you select based upon top speed could not form an appropriate oil film at reduced rates. Also, if your device has long still durations, you should state that– otherwise neighboring devices vibrations could cause incorrect brinelling damages.

3. Required Life Span

Birthing service life is normally revealed as L10h (the number of hours that 90% of a bearing group will reach before fatigue spalling appears). A typical blunder is going for an excessively lengthy life– once L10h exceeds 100,000 hours, the bearing dimension obtains as well large. It becomes harder to lube, torque rises, and it becomes a lot more conscious minimal load. In the long run, it could stop working for reasons other than exhaustion.

4. Space Restraints

You ought to understand your offered area limits from the start– shaft size range, real estate bore size, axial size limits. As soon as you know the matching shaft size and offered space, you can promptly limit your choices.

5. Running Precision Requirements

Many applications do simply fine with basic accuracy bearings. But also for high-speed or high-precision equipment like machine device pins, you’ll require P5, P4, or perhaps greater qualities. Simply remember that choosing higher accuracy without a real requirement will certainly increase expenses substantially. Suit the quality to your real requirements.

Part Two: Matching Bearing Types to Functioning Issues

Once you have those criteria clear, the next action is to match the right bearing type based upon lots instructions, size, speed, and misalignment resistance.

1. Lots Direction: Radial, Axial, or Integrated?

This is the most basic filter. It can point you to a few candidates as soon as possible:

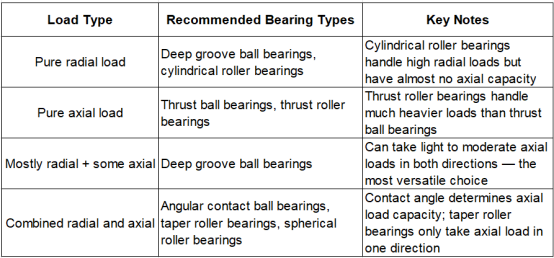

When the axial-to-radial tons proportion (Fa/Fr) modifications, your option reasoning adjustments too. At low proportions, go with deep groove sphere bearings. At modest proportions, utilize small-contact-angle angular contact bearings or taper roller bearings. At high proportions, you’ll need large-contact-angle bearings, or take into consideration integrating a thrust bearing with a radial bearing.

( Radial)

2. Lots Dimension: Ball Bearings or Roller Bearings?

This is a timeless selection:

Light or moderate tons: Go with sphere bearings (deep groove or angular contact). The factor contact between rounds and raceways offers lower rubbing, making them appropriate for tool to high speeds.

Hefty or influence loads: You should utilize roller bearings (round, spherical, or taper). Line get in touch with in between rollers and raceways provides a lot greater tons capability and far better influence resistance.

3. Speed: Round Bearings for High Speed, Roller Bearings for Low

Generally speaking, sphere bearings have greater speed limits than roller bearings. For high-speed applications (above 1000 r/min), put ball bearings on top of your list. When you require the highest possible rate with pure radial load, open deep groove ball bearings are your best bet. For incorporated lots at high speed, angular contact ball bearings are the way to go.

Cylindrical roller bearings, taper roller bearings, and needle bearings have relatively reduced speed limits. They’re mostly fit for low-to-medium rate, heavy-load conditions.

4. Imbalance Tolerance: Do You Required Self-Aligning?

This frequently gets overlooked but it’s exceptionally important. You must think about self-aligning bearings when:

Birthing housing bores do not line up well

The shaft isn’t stiff sufficient and flexes throughout operation

The bearing span is lengthy and thermal growth creates angular imbalance

You’re utilizing separate split real estates (like pillow block bearings)

Round roller bearings and round bearings have scooped outer ring raceways. This allows a certain amount of angular misalignment in between the inner and external rings without damaging side tension. They can make up for both dynamic deflection and fixed setup mistakes.

On the other hand, round roller bearings, taper roller bearings, and needle bearings have very restricted self-aligning capability. Even a little angular misalignment can trigger tension focus at the roller ends, bring about high edge pressures that considerably reduce bearing life. Deep groove round bearings do have some self-aligning capability, however the allowable angle is small– surpassing it will certainly minimize life as well.

5. Axial Growth Settlement: Fixed End or Drifting End?

Lengthy shafts expand and agreement with temperature modifications throughout procedure. That suggests you need to establish your bearing setup with one fixed end and one floating end.

NU and N collection round roller bearings have no flanges on the internal ring (or on one side). This lets the shaft move openly in the axial instructions about the real estate– making them perfect as floating-end bearings. NJ and NUP collection can supply axial positioning in one or both directions, so they work well as fixed-end bearings. This configuration is very usual in transmissions and electrical motors.

Component Three: BMB Product at a Glance

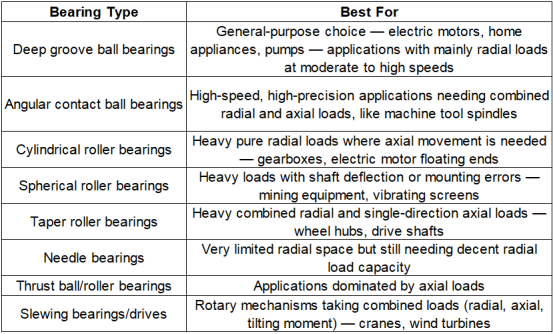

BMB supplies a full series of industrial bearings, covering all the significant types we’ve gone over. This fast reference table attaches the selection concepts over straight to particular product classifications:

Component 4: Diving Deeper– Precision, Clearance, Lubrication, and Seals

( Axial)

1. Precision Grades

Standard precision (P0) works for the vast majority of basic equipment. For accuracy equipment like machine device spindles or aerospace parts, you’ll require P5 or higher. Tighter accuracy indicates tighter dimensional tolerances and better running precision– however likewise greater expenses.

2. Internal Clearance and Preload

Bearings need to maintain proper interior clearance after installation. Excessive clearance causes vibration and sound. Too little, and thermal development can cause the bearing to seize. In grandfather clauses like equipment device spindles, preload (using unfavorable clearance) is made use of to improve system strength and rotational precision.

3. Lubricating substance Choice

Lubrication is a make-or-break aspect for birthing life. Grease benefits many moderate-speed and temperature level applications– it’s basic to seal and can run maintenance-free for long periods. Oil (oil bath, oil haze, jet lubrication) is better for high-speed or high-temperature problems, as it dissipates heat more effectively. When picking a lube, inspect the rate variable (ndm worth). Do not just choose based upon maximum speed– the oil you choose may not create a proper film at lower speeds.

4. Securing Arrangements

Choose the seal kind based upon your environment: contact seals keep dirt out well but add some rubbing; non-contact seals help broadband yet provide much less defense versus contamination; open bearings count on exterior sealing systems.

Component 5: Life Estimation– From Concept to Method

( or Combined Basic Filter Table)

At the end of the day, you require to validate whether your chosen bearing will really fulfill the anticipated service life. This is where basic score life calculation comes in.

The standard ranking life L10 formula (ISO 281 requirement):

For sphere bearings: L10 = (C/P) FIVE × (10 SIX/ 60n) hours

For roller bearings: L10 = (C/P)^(10/3) × (10 ⁶/ 60n) hours

Where:

C: standard vibrant tons rating (kN)– located in the product brochure

P: comparable vibrant tons (kN)– takes both radial and axial tons right into account

The comparable vibrant load P is determined as: P = X · Fr + Y · Fa

Fr is the radial load, Fa is the axial lots

X and Y are coefficients that depend on birthing type and the Fa/Fr proportion– check the directory for these values

For more requiring problems, you can apply adjustment aspects: Ln = a1 × a2 × a3 × L10

a1 is the dependability factor (a1 = 1 for 90% dependability, concerning 0.21 for 99%)

a2 is the material element (top notch bearing steel can reach 1.5 to 2)

a3 is the operating problems aspect (good lubrication and sanitation can give 2 to 3)

With this estimation, engineers can confirm that the picked bearing satisfies the required life span. It likewise helps contrast multiple alternatives and make data-driven choices.

This overview has actually strolled you with the complete selection path– from examining working conditions, to matching the ideal bearing type, to validating life span. Recognizing and applying this method will certainly assist you make precise, reliable, and economical bearing decisions throughout a wide variety of industrial applications.
